SignalR Web Client

It is a debugging tool to test ASP.Net Core SignalR hubs. Using this tool, we can send the data to the SignalR hub and receive a response from the SignalR Hub. The tool is designed for DotNet core developers to make their life easier when they will work with SignalR. Developer’s, no need to write a single line of code to test the Hub. SignalR Web Client is available here.





Table of Contents

Prior Knowledge

Before using this tool, you should know about:

Prerequisite

Installation

SignalR Web Client is available here.

To set up in local environment:

  1. Clone repository.
    Open cmd and run the below command:
     git clone "https://github.com/gourav-d/SignalR-Web-Client.git"
  2. Once the cloning is completed, go to the “SignalR-Web-Client” folder.
    cd SignalR-Web-Client
  3. The tool needs to be run under some server. This is one of the requirements of the SignalR library. So, if you already have a running server, then copy the content of “SignalR-Web-Client\dist” folder and put it on your server.
    If you don’t have a server or wants to run the tool in a different server, no worry.
    Will tell you two approaches to run this tool.
    1. Using http server(npm)
      Here, we will install http-server and then we will host SignalR Web Client(published files) using this server.
       npm install http-server -g

      Then go to “SignalR-Web-Client\dist” folder, and run the below command:

       http-server

      It will start the http-server and host the application.

           Starting up http-server, serving ./
     Available on:
     http://192.168.1.5:8080
     http://127.0.0.1:8080
     http://172.18.96.166:8080
     Hit CTRL-C to stop the server
    2. Using Webpack Dev Server
      Here, we will not use the published files. Instead, we will build the tool and then run under the webpack dev server.
      NOTE:: If you want to customize the tool, then you can you this approach.
        npm install
  npm run dev

        First, it will install the npm packages, then start the webpack-dev-server and host the application.   ```
> signalr-web-client@1.0.0 dev C:\demo\SignalR-Web-Client
> webpack-dev-server --content-base dist --hot --mode development

i ｢wds｣: Project is running at http://localhost:8080/
i ｢wds｣: webpack output is served from /   ```

  4. This step is required if SignalR Web client and Hub server hosted separately.
    ex: Hub Server is running on http://localhost:5001 and
    SignalR Web client is running on : http://localhost:8080

    In such a case, we have to inform the Hub Server, that allows SignalR Web Client (http://localhost:8080) origin.

Startup.cs

public void Configure(IApplicationBuilder app, IHostingEnvironment env)
{
    ...
    //CORS: This required when SignalR Web client is hosted on different server
    app.UseCors("Cors");
    ...
    app.UseSignalR(option => {
        //You'r Hub
        //option.MapHub<SampleHub>(new PathString("/Test/Hub"));
    });
}

public void ConfigureServices(IServiceCollection services)
{
    //CORS: This required when SignalR Web client is hosted on different server
    services.AddCors(options => options.AddPolicy("Cors", builder =>
    {
      builder
        .AllowAnyMethod()
        .AllowAnyHeader()
        .AllowCredentials()
        .WithOrigins("http://localhost:8080"); //SignalR Web Client Url
    }));

    ...
    services.AddSignalR();

  ...
}

refer this Startup.cs file

Run SignalR Web Client using Docker

$ docker pull gourav5/signalr-web-client

$ docker run -it -d -p 8080:80 gourav5/signalr-web-client

Then you can hit http://localhost:8080 or http://host-ip:8080 in your browser.

How it works?

SignalR Web Client has two views:

  1. Basic
    • Send data to Hub
    • Listen to the hub broadcast messages
  2. Advance
    • Send data to Hub
    • Listen to the hub broadcast messages
    • Support token-based authentication
    • Support multiple transport type (like WebSocket, Long Polling, Server Send Event)
    • Skip Negotiation, this feature only supported when the WebSockets transport is the only enabled transport. This setting can’t be enabled when using the Azure SignalR Service.

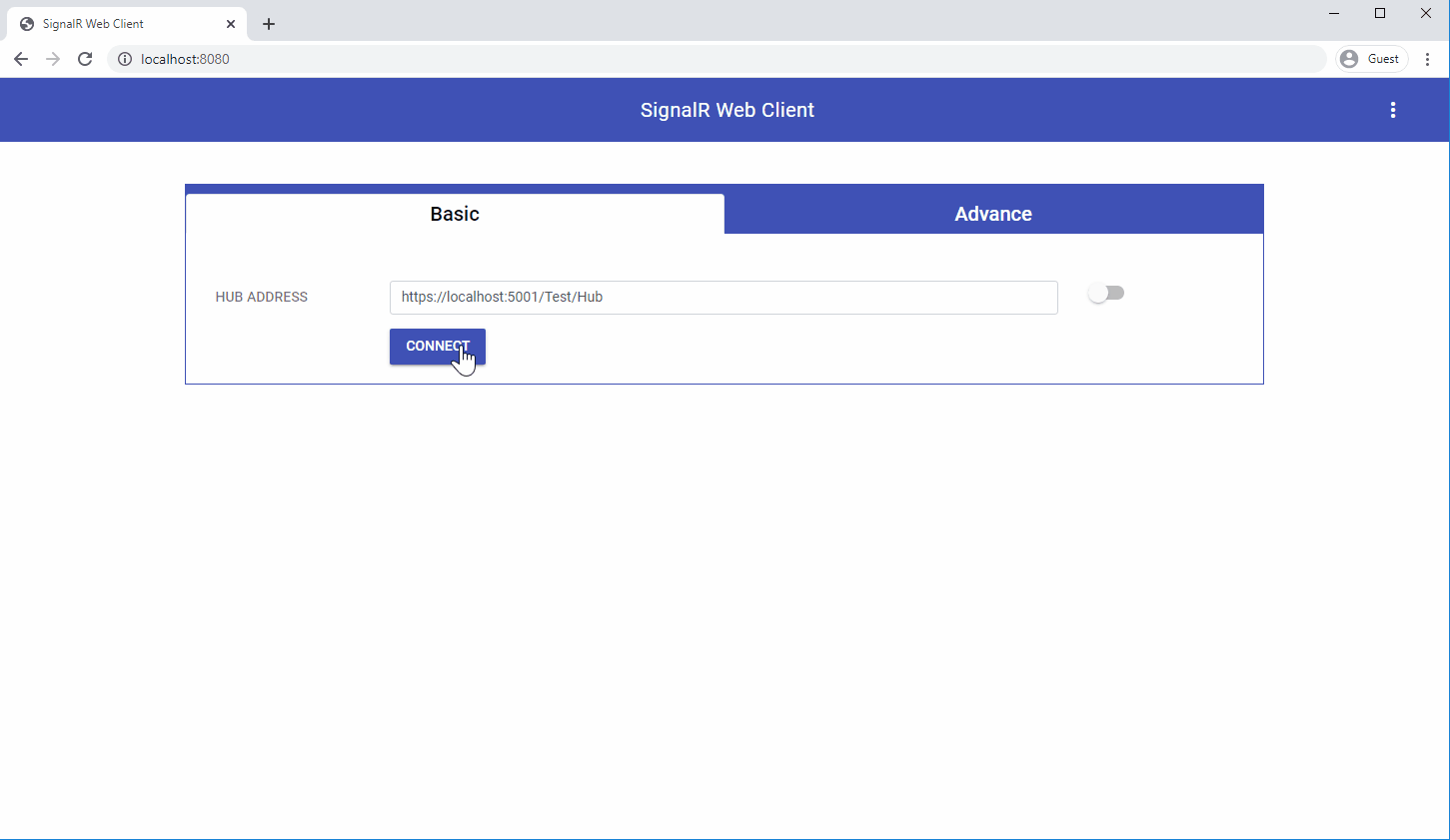

Basic View

  1. Provide the valid hub URL in Hub Address textbox.(for ex. https://localhost:5001/Test/Hub).

  2. Click on the connect button, it will try to connect with the server. Once the connection is established, if any data is broadcast from the Hub(ex. SampleHub) to all the clients then, it will be displayed in the response payload section.

  3. If we want to call any Hub method. For example SendMessage method

    public class SampleHub : Hub
{
 public async Task SendMessage(string data)
 {
     var connectionId = Context.ConnectionId;
     await Clients.Client(connectionId).SendAsync("ReceiveData", $"Data Received from  SendMessage method: {data}");
 }
}

    In the tool, we have to pass the parameter.

Server Method:

SendMessage

Request Payload:

It can take multiple parameters. In our example, SendMessage method only takes one parameter of type string.
ex. SendMessage(string data)

    Argument textbox  :  Hello
    Data Type         :  Text

Data Type supports:

Currently, the tool supports these data types Text, Number & JSON.

  1. Then click on the send button. It will send all the data to the hub.

Advance View

It has all the functionality which basic view provides, also it has additional features like:

Reporting Issues

Nothing is perfect.

Then, just open a new clear and descriptive issue.

Samples

Samples are available here

Upcoming Features

Technologies

ASP.Net Core Support

Currently, it works well with ASP.Net Core 2.2, 3.0 & 3.1.

Browser Support

Currently, it supports only the chrome browser.

License

MIT License

Copyright © 2020, Created by Gourav Dwivedi. Released under the terms of the MIT license.
